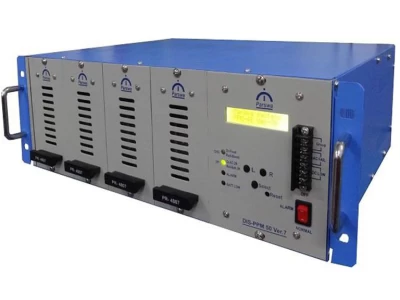

FCBC 48V, 25A (PPM4850-LCD)
PARSWAPOWERMODULAR PPM48 SERIES is SMPS based highly efficient unit that provides charging to batteries and at the same time supply Regulated DC supply to the communication equipments. The modular design allows step-by-step increase of current capacity by adding modules. A chassis supports up to 4 plug-in Modules with various options of current providing a gross maximum of up to 28 Amps.
| Input AC Range | 164-275VAC |
| Output DC Voltage | 54.2 ± 0.5 V DC (Default) |
| DC Voltage Range | -40V to 56 Volts adjustable |
| Output DC Current | Gross 25 Amps (Load + Battery) (Max.) |
| Current rating per module | 5 Amps / 6.25 Amps |
| Output current options | 12.5 Amps / 18.75 Amps / 25 Amps |
| Modularity | Hot-pluggable, Capacity of 4 modules |
| Operating Temp Range | -10°C to +55°C |
| Monitoring & Alarm | LCD, LED, Dry Contacts |
| Other Monitoring | SNMP - Made to order |
| Mounting Arrangement | 19 inch mounting |
| Protections | Lightening, Transient & Surge at I/p, Over Voltage disconnect at high AC I/p, Overload at O/p, Reverse battery, Short circuit, Battery LVD |
| SPECIAL FEATURES | |
| Power-On Delay – 5 Second Power-On Delay to protect against surge & transients induced when Power Switched On. | |
| Micro-controller based Comprehensive Monitoring & Alarm | |
| External LPT arrangement to ensure quick replacement | |
