FCBC 48+24V, 25A (PPM4824-LCD)

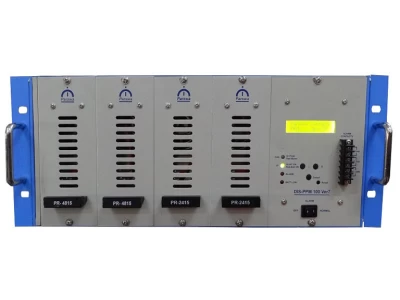

PARSWA-POWER MODULAR PPM4824 SERIES is SMPS based highly efficient unit that has two regulated, isolated & independent output ports of 24Vdc and 48Vdc. The output is available on both ports simultaneously. The modular design allows step-by-step increase of current capacity by adding modules. A subrack supports up to a total of 4 plug-in Modules; two of them are of 24 VDC & two are of 48 VDC. The protection is available against wrong Insertion of modules.
| Input AC Range | 164-275VAC |
| Output DC Voltage |
Output A: 54.2 ± 0.5 V DC Output B: 27.2 ± 0.5 V DC (Default) |
| DC Voltage Range |
Output A: 40V to 56V adjustable Output B: 18V to 30V adjustable |
| Output DC Current | 48V, 25 Amps & 24V, 25 Amps (Max.) |
| Current rating per module | 12.5 Amps |
| Modularity | Hot-pluggable, Capacity of 4 modules |
| Operating Temp Range | -10°C to +55°C |
| Monitoring & Alarm | LCD, LED, Dry Contacts |
| Other Monitoring | SNMP - Made to order |
| Mounting Arrangement | 19 inch mounting |
| Protections | Lightening, Transient & Surge at I/p, Over Voltage disconnect at high AC I/p, Overload at O/p, Reverse battery, Short circuit, Battery LVD |
| SPECIAL FEATURES | |
| Power-On Delay – 5 Second Power-On Delay to protect against surge & transients induced when Power Switched On. | |
| Micro-controller based Comprehensive Monitoring & Alarm | |
| External LPT arrangement to ensure quick replacement | |
