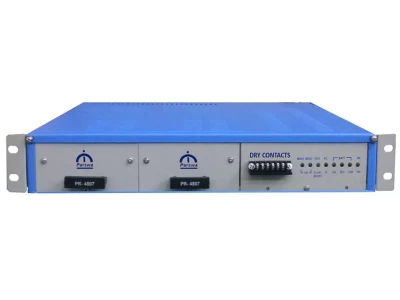

FCBC 48V, 15A (PPM4815C)
PPM4815C delivers clean, regulated DC output from Wide Range AC input. PPM4815C/15A, in specific delivers 48 VDC isolated output @ 15 Amps from AC input of 150-275V.
The Unit is available in Standard 19 “ Rack mount and has provision of Output Over Voltage, Over-Load Protection, Short circuit protection, Thermal protection, Lightening, Transient & surge protection. Two such Units can be combined at Aux Output for 1+1 Protection.
| Input AC Range | 164-275VAC |
| Output DC Voltage | 54.2 ± 0.5 V DC (Default) |
| Output DC Current | Gross 15 Amps (Load + Battery) |
| Modularity | Hot-pluggable, 2 Modules of 7.5 Amps |
| DC Voltage Range | -40V to 56 Volts adjustable |
| Operating Temp Range | -10°C to +55°C |
| Monitoring & Alarm | LED based, Dry Contacts |
| Mounting Arrangement | 19 inch mounting |
| Protections | Transient & Surge at I/p, Over Voltage disconnect at high AC I/p, Overload at O/p, Reverse battery, Short circuit |
