FCBC 24V, 50A (PPM2450-LCD)

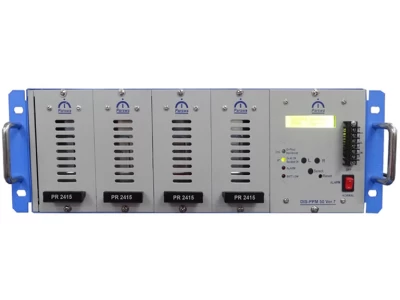

PARSWAPOWERMODULAR PPM24 SERIES is SMPS based highly efficient unit that provides charging to 24V battery bank and at the same time supplies Regulated DC to the communication equipment. The modular design allows step-by-step increase of current capacity by adding modules. A chassis supports up to 4 plug-in Modules with various options of current providing a gross maximum of up to 50 Amps.
| Input AC Range | 164-275VAC |
| Output DC Voltage | 27.2 ± 0.5 V DC (Default) |
| DC Voltage Range | 22V to 32 Volts adjustable |
| Output DC Current | Gross 50 Amps (Load + Battery) (Max.) |
| Current rating per module | 12.5 Amps |
| Output current options | 25 Amps / 37.5 Amps / 50 Amps |
| Modularity | Hot-pluggable, Capacity of 4 modules |
| Operating Temp Range | -10°C to +55°C |
| Monitoring & Alarm | LCD, LED, Dry Contacts |
| Other Monitoring | SNMP - Made to order |
| Mounting Arrangement | 19 inch mounting |
| Protections | Lightening, Transient & Surge at I/p, Over Voltage disconnect at high AC I/p, Overload at O/p, Reverse battery, Short circuit, Battery LVD |
| SPECIAL FEATURES | |
| Power-On Delay – 5 Second Power-On Delay to protect against surge & transients induced when Power Switched On. | |
| Micro-controller based Comprehensive Monitoring & Alarm | |
| External LPT arrangement to ensure quick replacement | |
