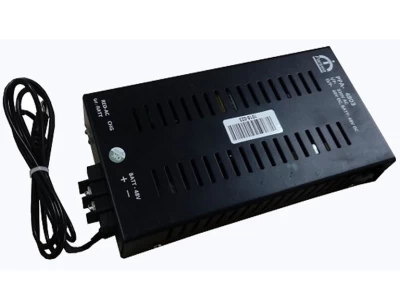

FCBC 48V, 2.5A Compact (PPA4803)
PPA-4803 is a 120W enclosed type AC to DC Converter with a light-weight and compact design which provides 48V DC Output from AC Input as well as charges 48V Battery bank. In addition to the high efficiency of upto 90%, the unit’s operating temperature range is wide. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. With various protections available, the unit serves as a cost efficient solution for various industrial applications.
| Input AC Range | 160-264VAC |
| Output DC Voltage | 54.2 ± 0.5 V DC (Default) |
| Output DC Current | Gross 2.5A |
| Output current options |
DC Output port: 1.5A Battery port: 1A |
| Structure | Metal frame, compact |
| Operating Temp Range | -30°C to +70°C |
| Protection | Over Voltage and Over load |
| Mounting Arrangement | Table top, adaptor form |
