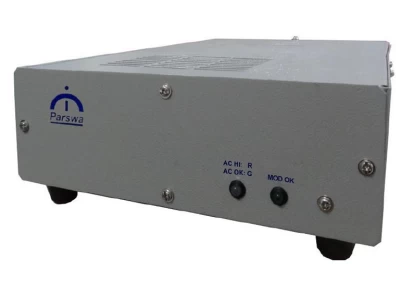

FCBC 48V, 12.5A (PP4812C)
PP4812C is a 600W enclosed type FCBC with a light-weight and compact design which provides 48V DC Output from AC Input as well as charges 48V Battery bank. In 1+1 mode, the outputs can be made available in parallel using a parallel port arrangement given at the back of each converter. Both converters are fed individual AC supply, but the output is made parallel.
| Input AC Range | 164-275VAC |
| Output DC Voltage | 54.2 ± 0.5 V DC (Default) |
| Output DC Current | 12.5 Amps (Load + Battery) |
| Modularity | Non-modular, Single module |
| Redundancy Option | 1+1 with mounting bracket |
| Mounting option |
Half 19 inch in stand-alone mode |
| Operating Temp Range | -10°C to +55°C |
| Protections | Transient & Surge at I/p, Over Voltage at I/p and O/p, Overload at O/p, Short Circuit |
