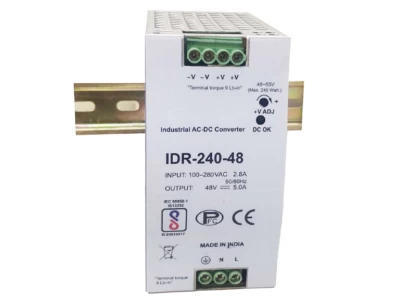

240W Industrial Power Supply (IDR-240-48)

IDR-240 is industrial grade 240W DIN Rail Power Supply Series, designed to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving. The unit adopts the full range AC input from 90 VAC to 264 VAC and conforms to EMI/EMC EN61000-3-2.

IDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 90%, the entire series can operate at ambient temperature between -20ºC and 70ºC under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. Overall, the unit is a very cost effective power supply solution for industrial applications.
